To understand the use of CRC cards for class discovery
To be able to identify inheritance, aggregation, and dependency relationships
between classes
To master the use of UML class diagrams to describe class relationships
To learn how to use object-oriented design to build complex programs
The Software Life Cycle
Encompasses all activities from initial analysis until obsolescence
Formal process for software development
Describes phases of the development process
Gives guidelines for how to carry out the phases
Development process
Analysis
Design
Implementation
Testing
Deployment
Analysis
Decide what the project is suppose to do
Do not think about how the program will accomplish tasks
Program Run: requirements document
Describes what program will do once completed
User manual: tells how user will operate program
Performance criteria
Design
Plan how to implement the system
Discover structures that underlie problem to be solved
Decide what classes and methods you need
Program Run:
Description of classes and methods
Diagrams showing the relationships among the classes
Implementation
Write and compile the code
Code implements classes and methods discovered in the design phase
Program Run: completed program
Testing
Run tests to verify the program works correctly
Program Run: a report of the tests and their results
Deployment
Users install program
Users use program for its intended purpose
The Waterfall Model
Sequential process of analysis, design, implementation, testing, and deployment
When rigidly applied, waterfall model did not work
The Spiral Model
Breaks development process down into multiple phases
Early phases focus on the construction of prototypes
Lessons learned from development of one prototype can be applied to the next
iteration
Problem: can lead to many iterations, and process can take too long to complete

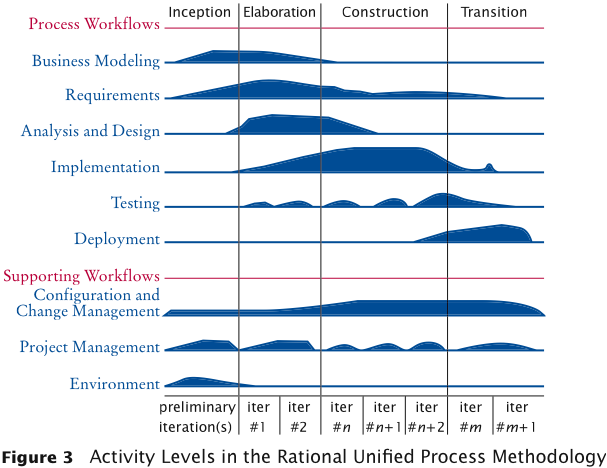

Activity Levels in the Rational Unified Process
Development process methodology by the inventors of UML
Extreme Programming
Strives for simplicity
Removes formal structure
Focuses on best practices
Extreme Programming
Realistic planning
Customers make business decisions
Programmers make technical decisions
Update plan when it conflicts with reality
Small releases
Release a useful system quickly
Release updates on a very short cycle
Metaphor
Programmers have a simple shared story that explains the system
Extreme Programming
Simplicity
Design as simply as possible instead of preparing for future complexities
Testing
Programmers and customers write test cases
Test continuously
Refactoring
Restructure the system continuously to improve code and eliminate duplication
Extreme Programming
Pair programming
Two programmers write code on the same computer
Collective ownership
All programmers can change all code as needed
Continuous integration
Build the entire system and test it whenever a task is complete
Extreme Programming
40-hour week
Don't cover up unrealistic schedules with heroic effort
On-site customer
A customer is accessible to the programming team at all times
Coding standards
Follow standards that emphasize self-documenting code
Self Check 12.1
Suppose you sign a contract, promising that you will, for an agreed-upon price,
design, implement, and test a software package exactly as it has been specified
in a requirements document. What is the primary risk you and your customer are
facing with this business arrangement?
Answer:
It is unlikely that the customer did a perfect job with the requirements
document. If you don't accommodate changes, your customer may not like the
outcome. If you charge for the changes, your customer may not like the cost.
Self Check 12.2
Does Extreme Programming follow a waterfall or a spiral model?
Answer:
An extreme spiral model, with lots of iterations.
Self Check 12.3
What is the purpose of the on-site customer in Extreme Programming?
Answer:
To give frequent feedback as to whether the current iteration of the product
fits customer needs.
Object-Oriented Design
Discover classes
Determine responsibilities of each class
Describe relationships between the classes
Discovering Classes
A class represents some useful concept
Concrete entities: Bank accounts, ellipses, and products
Abstract concepts: Streams and windows
Find classes by looking for nouns in the task description
Define the behavior for each class
Find methods by looking for verbs in the task description
Example: Invoice
Example: Invoice
Classes that come to mind: Invoice, LineItem, and Customer
Good idea to keep a list of candidate classes
Brainstorm, simply put all ideas for classes onto the list
You can cross not useful ones later
Finding Classes
Keep the following points in mind:
Class represents set of objects with the same behavior
Entities with multiple occurrences in problem
description are good candidates for objects
Find out what they have in common
Design classes to capture commonalities
Represent some entities as objects, others as primitive types
Should we make a class Address or use a String?
Not all classes can be discovered in analysis phase
Some classes may already exist

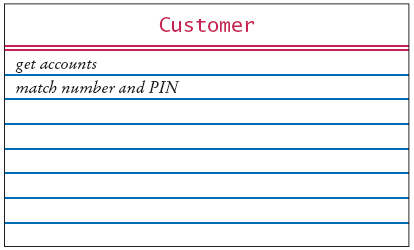

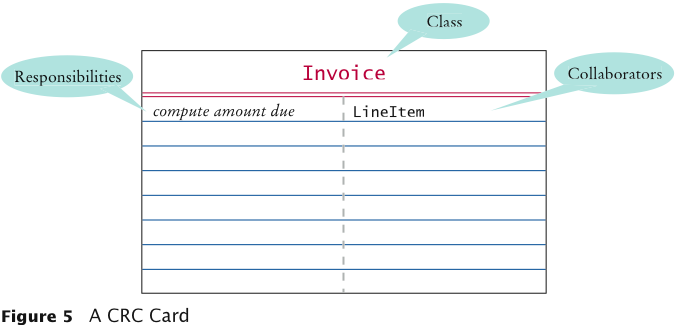

CRC Card
Describes a class, its responsibilities, and its collaborators
Use an index card for each class
Pick the class that should be responsible for each method (verb)
Write the responsibility onto the class card
Indicate what other classes are needed to fulfill responsibility (collaborators)
Self Check 12.4
Suppose the invoice is to be saved to a file. Name a likely collaborator.
Answer:PrintStream
Self Check 12.5
Looking at the invoice in Figure 4, what is a likely responsibility of the Customer
class?
Answer:
To produce the shipping address of the customer.
Self Check 12.6
What do you do if a CRC card has ten responsibilities?
Answer:
Reword the responsibilities so that they are at a higher level, or come up with
more classes to handle the responsibilities.
Relationships Between Classes
Inheritance
Aggregation
Dependency
Inheritance
Is-a relationship
Relationship between a more general class (superclass) and
a more specialized class (subclass)
Every savings account is a bank account
Every circle is an ellipse (with equal width and height)
It is sometimes abused
Should the class Tire be a subclass of a class Circle?
The has-a relationship would be more appropriate
Aggregation
Has-a relationship
Objects of one class contain references to objects of another class
Use an instance variable
A tire has a circle as its boundary:
class Tire
{
private String rating;
private Circle boundary;
. . .
}
Every car has a tire (in fact, it has four)
Example
class Car extends Vehicle
{
private Tire[] tires;
. . .
}
Dependency
Uses relationship
Example: many of our applications depend on the Scanner class to read
input
Aggregation is a stronger form of dependency
Use aggregation to remember another object between method calls
UML Relationship Symbols
Relationship
Symbol
Line Style
Arrow Tip
Inheritance
Solid
Triangle
Interface Implementation
Dotted
Triangle
Aggregation
Solid
Diamond
Dependency
Dotted
Open
Self Check 12.7
Consider the Bank and BankAccount classes of Chapter 7. How
are they related?
Answer:
Through aggregation. The bank manages bank account objects.
Self Check 12.8
Consider the BankAccount and SavingsAccount objects of Chapter
10. How are they related?
Answer:
Through inheritance.
Self Check 12.9
Consider the BankAccountTester class of Chapter 3. Which classes does
it depend on?
Answer:
The BankAccount, System, and PrintStream classes.
Attributes and Methods in UML Diagrams
Multiplicities
any number (zero or more): *
one or more: 1..*
zero or one: 0..1
exactly one: 1
Aggregation and Association
Association: More general relationship between classes
Use early in the design phase

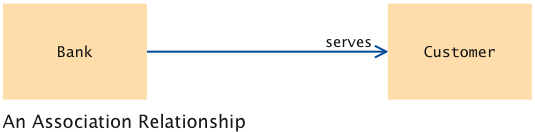

A class is associated with another if you can navigate from objects of one class
to objects of the other
Given a Bank object, you can navigate to Customer objects
Five-Part Development Process
Gather requirements
Use CRC cards to find classes, responsibilities, and collaborators
Use UML diagrams to record class relationships
Use javadoc to document method behavior
Implement your program
Case Study: Printing an Invoice — Requirements
Task: Print out an invoice
Invoice: Describes the charges for a set of products in certain quantities
Omit complexities
Dates, taxes, and invoice and customer numbers
Print invoice
Billing address, all line items, amount due
Line item
Description, unit price, quantity ordered, total price
For simplicity, do not provide a user interface
Test program: Adds line items to the invoice and then prints it
Case Study: Sample Invoice
I N V O I C E
Sam's Small Appliances
100 Main Street
Anytown, CA 98765
Description Price Qty Total
Toaster 29.95 3 89.85
Hair dryer 24.95 1 24.95
Car vacuum 19.99 2 39.98
AMOUNT DUE: $154.78
Case Study: Printing an Invoice — CRC Cards
Discover classes
Nouns are possible classes:
Invoice
Address
LineItem
Product
Description
Price
Quantity
Total
Amount Due
Case Study: Printing an Invoice — CRC Cards
Analyze classes:
Invoice
Address
LineItem // Records the product and the quantity
Product
Description // Field of the Product class
Price // Field of the Product class
Quantity // Not an attribute of a Product
Total // Computed — not stored anywhere
Amount Due // Computed — not stored anywhere
Classes after a process of elimination:
Invoice
Address
LineItem
Product
CRC Cards for Printing Invoice

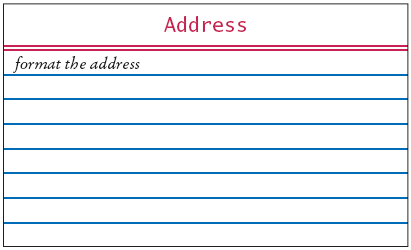

Invoice and Address
must be able to format themselves:
CRC Cards for Printing Invoice
Add collaborators to invoice card:
CRC Cards for Printing Invoice
Product and LineItem
CRC cards:
CRC Cards for Printing Invoice
Invoice must be populated with
products and quantities:
Case Study: Printing an Invoice — UML Diagrams
Printing an Invoice — Method Documentation
Use javadoc documentation to record the behavior of the classes
Leave the body of the methods blank

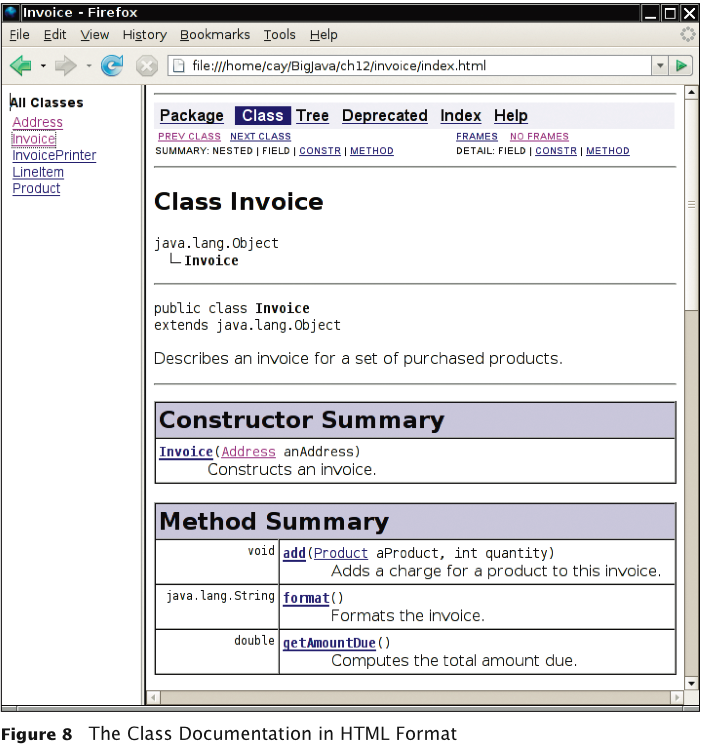

Run javadoc to obtain formatted version of documentation in HTML format
Advantages:
Share HTML documentation with other team members
Format is immediately useful: Java source files
Supply the comments of the key methods
Method Documentation — Invoice Class
/**
Describes an invoice for a set of purchased products.
*/
public class Invoice
{
/**
Adds a charge for a product to this invoice.
@param aProduct the product that the customer ordered
@param quantity the quantity of the product
*/
public void add(Product aProduct, int quantity)
{
}
/**
Formats the invoice.
@return the formatted invoice
*/
public String format()
{
}
}
Method Documentation — LineItem Class
/**
Describes a quantity of an article to purchase and its price.
*/
public class LineItem
{
/**
Computes the total cost of this line item.
@return the total price
*/
public double getTotalPrice()
{
}
/**
Formats this item.
@return a formatted string of this line item
*/
public String format()
{
}
}
Method Documentation — Product Class
/**
Describes a product with a description and a price.
*/
public class Product
{
/**
Gets the product description.
@return the description
*/
public String getDescription()
{
}
/**
Gets the product price.
@return the unit price
*/
public double getPrice()
{
}
}
Method Documentation — Address Class
/**
Describes a mailing address.
*/
public class Address
{
/**
Formats the address.
@return the address as a string with three lines
*/
public String format()
{
}
}
The Class Documentation in the HTML Format
Printing an Invoice — Implementation
The UML diagram will give instance variables
Look for associated classes
They yield instance variables
Implementation
Invoice aggregates Address and LineItem
Every invoice has one billing address
An invoice can have many line items:
public class Invoice
{
. . .
private Address billingAddress;
private ArrayList<LineItem> items;
}
Implementation
A line item needs to store a Product object and quantity:
public class LineItem
{
. . .
private int quantity;
private Product theProduct;
}
Implementation
The methods themselves are now very easy
Example:
getTotalPrice of LineItem gets the unit price of the product
and multiplies it with the quantity:
/**
Computes the total cost of this line item.
@return the total price
*/
public double getTotalPrice()
{
return theProduct.getPrice() * quantity;
}
ch12/invoice/InvoicePrinter.java
ch12/invoice/Invoice.java
ch12/invoice/LineItem.java
ch12/invoice/Product.java
ch12/invoice/Address.java
Self Check 12.10
Which class is responsible for computing the amount due? What are its
collaborators for this task?
Answer:
The Invoice class is responsible for computing the amount due. It
collaborates with the LineItem class.
Self Check 12.11
Why do the format methods return String objects instead of directly
printing to System.out?
Answer:
This design decision reduces coupling. It enables us to reuse the classes when
we want to show the invoice in a dialog box or on a web page.
Case Study: An Automatic Teller Machine — Requirements
ATM is used by bank customers. A customer has a
Checking account
Savings account
Customer number
PIN
Case Study: An Automatic Teller Machine — Requirements
Customers can select an account
The balance of the selected account is displayed
Then, customer can deposit and withdraw money
Process is repeated until the customer chooses to exit
Case Study: An Automatic Teller Machine — Requirements
Two separate interfaces:
GUI that closely mimics an actual ATM
Text-based interface
Case Study: An Automatic Teller Machine — Requirements

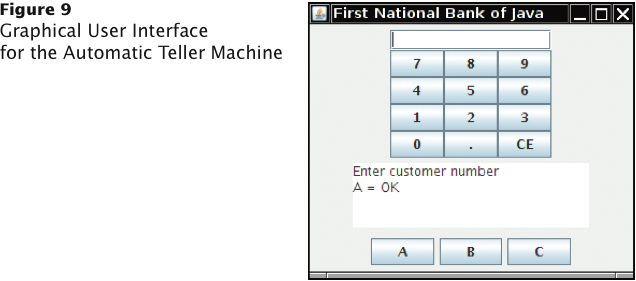

GUI Interface
Keypad
Display
Buttons A, B, C
Button functions depend on the state of the machine
Case Study: An Automatic Teller Machine — Requirements
At start up the customer is expected to
Enter customer number
Press the A button
The display shows:
Enter Customer Number
A = OK
Case Study: An Automatic Teller Machine — Requirements
The customer is expected to
Enter a PIN
Press A button
The display shows:
Enter PIN
A = OK
Case Study: An Automatic Teller Machine — Requirements
Search for the customer number and PIN
If it matches a bank customer, proceed
Else return to start up screen
Case Study: An Automatic Teller Machine — Requirements
If the customer is authorized
The display shows:
Select Account
A = Checking
B = Savings
C = Exit
Case Study: An Automatic Teller Machine — Requirements
If the user presses C
The ATM reverts to its original state
ATM asks next user to enter a customer number
If the user presses A or B
The ATM remembers selected account
The display shows:
Balance = balance of selected account
Enter amount and select transaction
A = Withdraw
B = Deposit
C = Cancel
Case Study: An Automatic Teller Machine — Requirements
If the user presses A or B
The value entered is withdrawn or deposited
Simulation: no money is dispensed and no deposit is accepted
The ATM reverts to previous state
If the user presses C
The ATM reverts to previous state
Case Study: An Automatic Teller Machine — Requirements
Text-based interaction
Read input from System.in instead of the buttons
Here is a typical dialog:
Enter account number: 1
Enter PIN: 1234
A=Checking, B=Savings, C=Quit: A
Balance=0.0
A=Deposit, B=Withdrawal, C=Cancel: A
Amount: 1000
A=Checking, B=Savings, C=Quit: C
Case Study: An Automatic Teller Machine — CRC Cards
Nouns are possible classes:
ATM
User
Keypad
Display
Display message
Button
State
Bank account
Checking account
Savings account
Customer
Customer number
PIN
Bank
CRC Cards for Automatic Teller Machine
ATM States
START: Enter customer ID
PIN: Enter PIN
ACCOUNT: Select account
TRANSACT: Select transaction
State Diagram for ATM Class
Case Study: An Automatic Teller Machine — UML Diagrams
Method Documentation ATM Class
/**
An ATM that accesses a bank.
*/
public class ATM
{
/**
Constructs an ATM for a given bank.
@param aBank the bank to which this ATM connects
*/
public ATM(Bank aBank) { }
/**
Sets the current customer number
and sets state to PIN.
(Precondition: state is START)
@param number the customer number
*/
public void setCustomerNumber(int number) { }
Method Documentation ATM Class (Cont.)
/**
Finds customer in bank.
If found sets state to ACCOUNT, else to START.
(Precondition: state is PIN)
@param pin the PIN of the current customer
*/
public void selectCustomer(int pin) { }
/**
Sets current account to checking or savings. Sets
state to TRANSACT.
(Precondition: state is ACCOUNT or TRANSACT)
@param account one of CHECKING or SAVINGS
*/
public void selectAccount(int account) { }
/**
Withdraws amount from current account.
(Precondition: state is TRANSACT)
@param value the amount to withdraw
*/
public void withdraw(double value) { }
. . .
}
Case Study: An Automatic Teller Machine — Implementation
Start implementation with classes that don't depend on others
Keypad
BankAccount
Then implement Customer which depends only on BankAccount
This bottom-up approach allows you to test your classes individually
Case Study: An Automatic Teller Machine — Implementation
Aggregated classes in UML diagram give instance variables
public class ATM
{
private Bank theBank;
...
}
From description of ATM states, it is clear that we require additional instance
variables:
public class ATM
{
private int state;
private Customer currentCustomer;
private BankAccount currentAccount;
...
}
Case Study: An Automatic Teller Machine — Implementation
Most methods are very straightforward to implement
Consider selectCustomer:
/**
Finds customer in bank.
If found sets state to ACCOUNT, else to START.
(Precondition: state is PIN)
@param pin the PIN of the current customer
*/
Description can be almost literally translated to Java instructions:
public void selectCustomer(int pin)
{
assert state == PIN;
currentCustomer = theBank.findCustomer(customerNumber, pin);
if (currentCustomer == null)
state = START;
else
state = ACCOUNT;
}
ch12/atm/ATM.java
ch12/atm/Bank.java
ch12/atm/Customer.java
ch12/atm/ATMSimulator.java
Program Run:
Enter account number: 1
Enter PIN: 1234
A=Checking, B=Savings, C=Quit: A
Balance=0.0
A=Deposit, B=Withdrawal, C=Cancel: A
Amount: 1000
A=Checking, B=Savings, C=Quit: C
. . .
ch12/atm/ATMViewer.java
ch12/atm/ATMFrame.java
ch12/atm/KeyPad.java
Self Check 12.12
Why does the Bank class in this example not store an array list of bank
accounts?
Answer:
The bank needs to store the list of customers so that customers can log in. We
need to locate all bank accounts of a customer, and we chose to simply store
them in the customer class. In this program, there is no further need to access
bank accounts.
Self Check 12.13
Suppose the requirements change — you need to save the current account
balances to a file after every transaction and reload them when the program
starts. What is the impact of this change on the design?
Answer:
The Bank class needs to have an additional responsibility: to load and
save the accounts. The bank can carry out this responsibility because it has
access to the customer objects and, through them, to the bank accounts.
